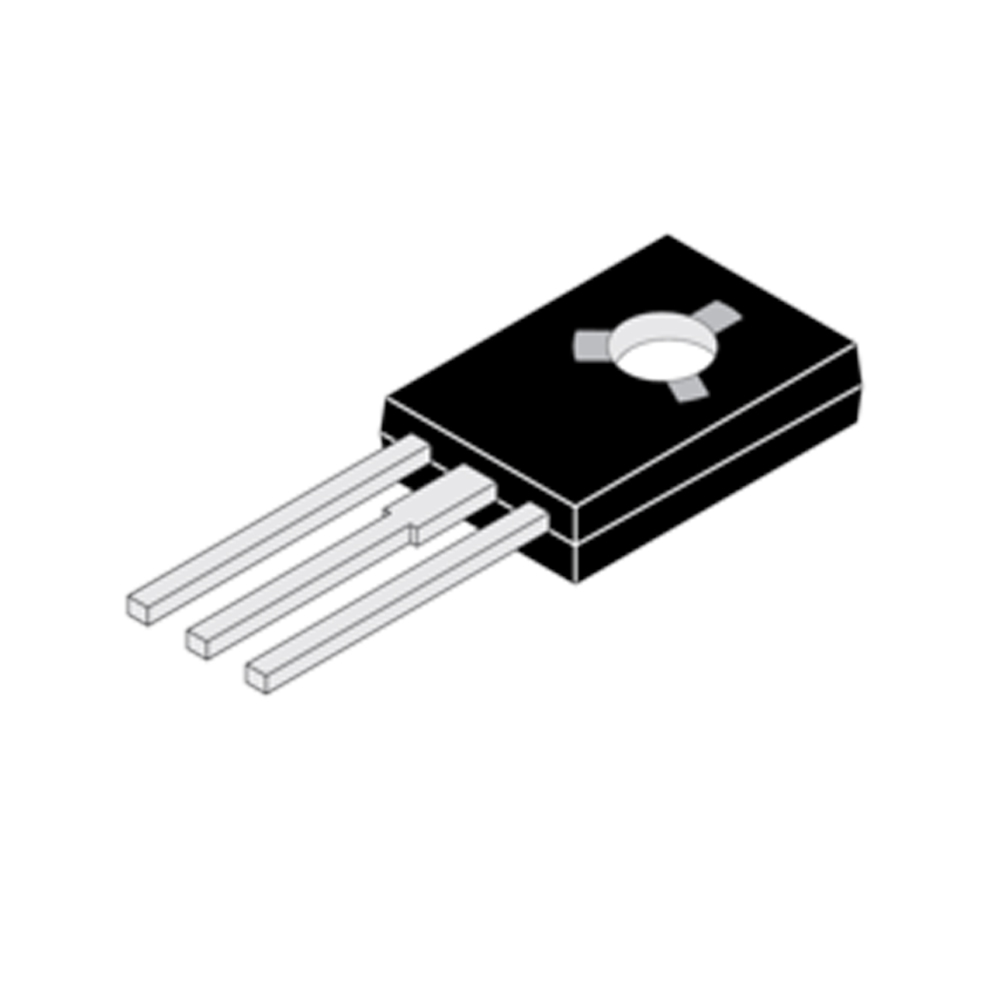

BD140 (CDIL)

The BD140 is a PNP power transistor, often used in similar applications as the BD139 but with the opposite polarity (PNP instead of NPN). It is commonly used in amplifier circuits, switching applications, and motor control circuits, where it can handle moderate amounts of power.

Key Specifications:

• Type: PNP transistor
• Voltage Rating (Vce): 80V
• Current Rating (Ic): 1.5A
• Power Dissipation: 15W (maximum)
• Gain (hFE): Typically from 40 to 320 (depends on the model and conditions)
• Package Type: TO-220

Features:

• High current handling capacity: Ideal for medium power applications.
• Low saturation voltage: Ensures efficient operation when switched on.
• Thermal stability: Suitable for use in high-power circuits, provided proper heat sinking is used.

Typical Applications:

• Amplifiers: Used in audio and power amplifiers.
• Switching: In low to medium power switching circuits.
• Motor control: In motor driver circuits, often paired with other complementary transistors (like the BD139, its NPN counterpart).

Like the BD139, the BD140 is useful in applications that require relatively high current, voltage, and power dissipation in a relatively compact package.
