CSC5200 (NPN) & CSC1943 (PNP) PAIR (CDIL)

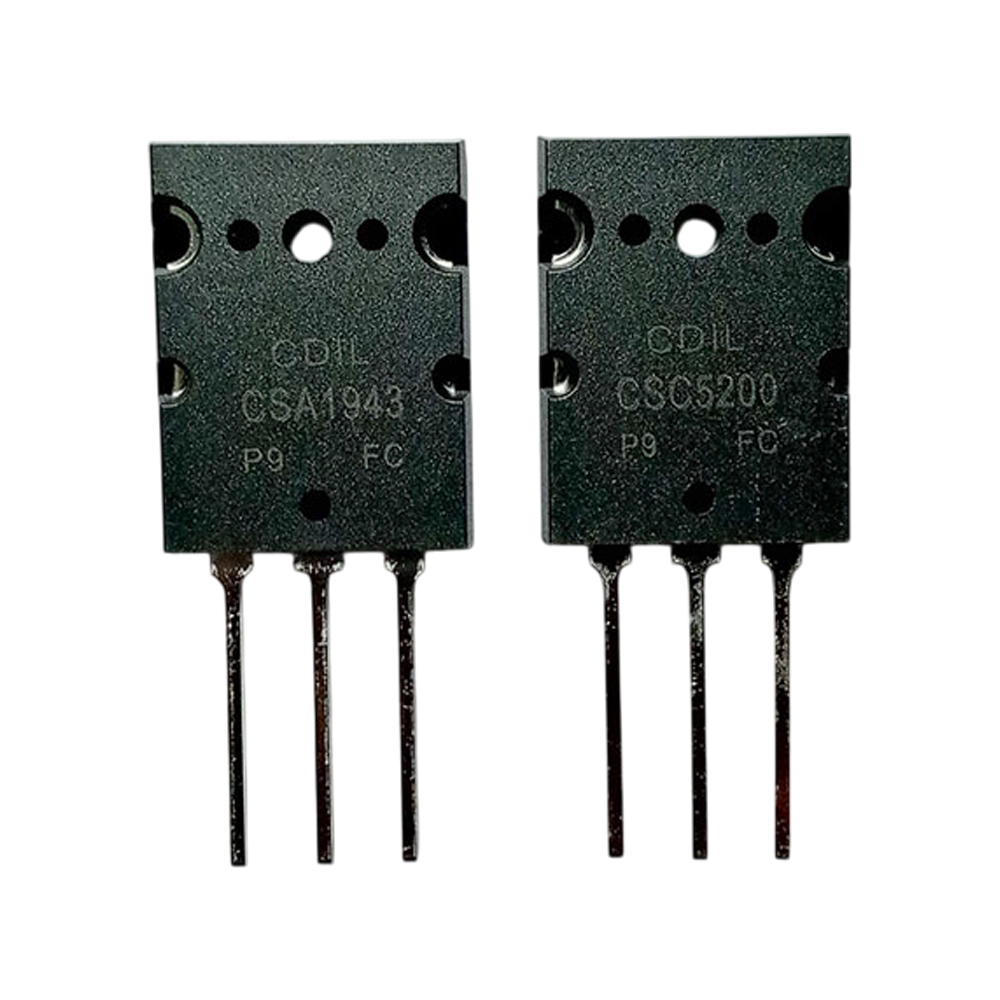

CSC5200 & CSC1943 Power Transistors (CDIL)

The CSC5200 and CSC1943 are high-performance power transistors from CDIL, designed to deliver superior efficiency and reliability in a variety of demanding applications. These complementary pairs are ideal for use in audio amplifiers, power supply circuits, motor drives, and other high-power electronic systems, offering robust performance and outstanding thermal stability.

CSC5200 (NPN) Power Transistor

• Type: NPN power transistor, designed for high-current applications.
• Voltage Rating: 230V for reliable performance under high-voltage conditions.
• Current Rating: 15A, capable of handling significant current loads while maintaining stability.
• Power Dissipation: High power dissipation capacity, ensuring minimal thermal buildup even under heavy operation.
• Application: Widely used in high-fidelity audio amplifiers, power amplifiers, and other power electronics.

CSC1943 (PNP) Power Transistor

• Type: PNP power transistor, paired with the CSC5200 for optimal performance in complementary circuits.
• Voltage Rating: 230V, providing strong voltage tolerance in demanding applications.
• Current Rating: 15A, designed to handle high current for efficient power transfer.
• Power Dissipation: Robust thermal performance, designed to operate under high-power conditions without overheating.
• Application: Often paired with the CSC5200 for audio amplification systems, power amplifiers, and other high-power electronics.

Key Features:

• Complementary Pair: The CSC5200 and CSC1943 are matched pairs, offering exceptional efficiency and balanced performance in push-pull configurations.
• High Efficiency: Designed for low saturation voltage and minimal distortion, ensuring excellent performance in audio and power applications.
• Thermal Stability: Built to withstand high temperatures and dissipate heat effectively, ensuring long-lasting and reliable performance.
• Versatile Use: Ideal for audio amplifiers, motor drives, power supplies, and other high-power electronic circuits.

Applications:

• High-power audio amplifiers
• Audio power amplification circuits
• Power supply systems
• Motor control circuits
• General-purpose high-power electronic applications

The CSC5200 & CSC1943 transistors are engineered to provide exceptional power handling, stability, and efficiency, making them a top choice for high-performance audio systems and demanding electronic circuits. Whether you're building a high-fidelity audio amplifier or a power supply, these transistors offer reliable and efficient performance for your applications.
